  • Cybaman 3-Axis Manipulator

    Manufacturing and Milling Systems

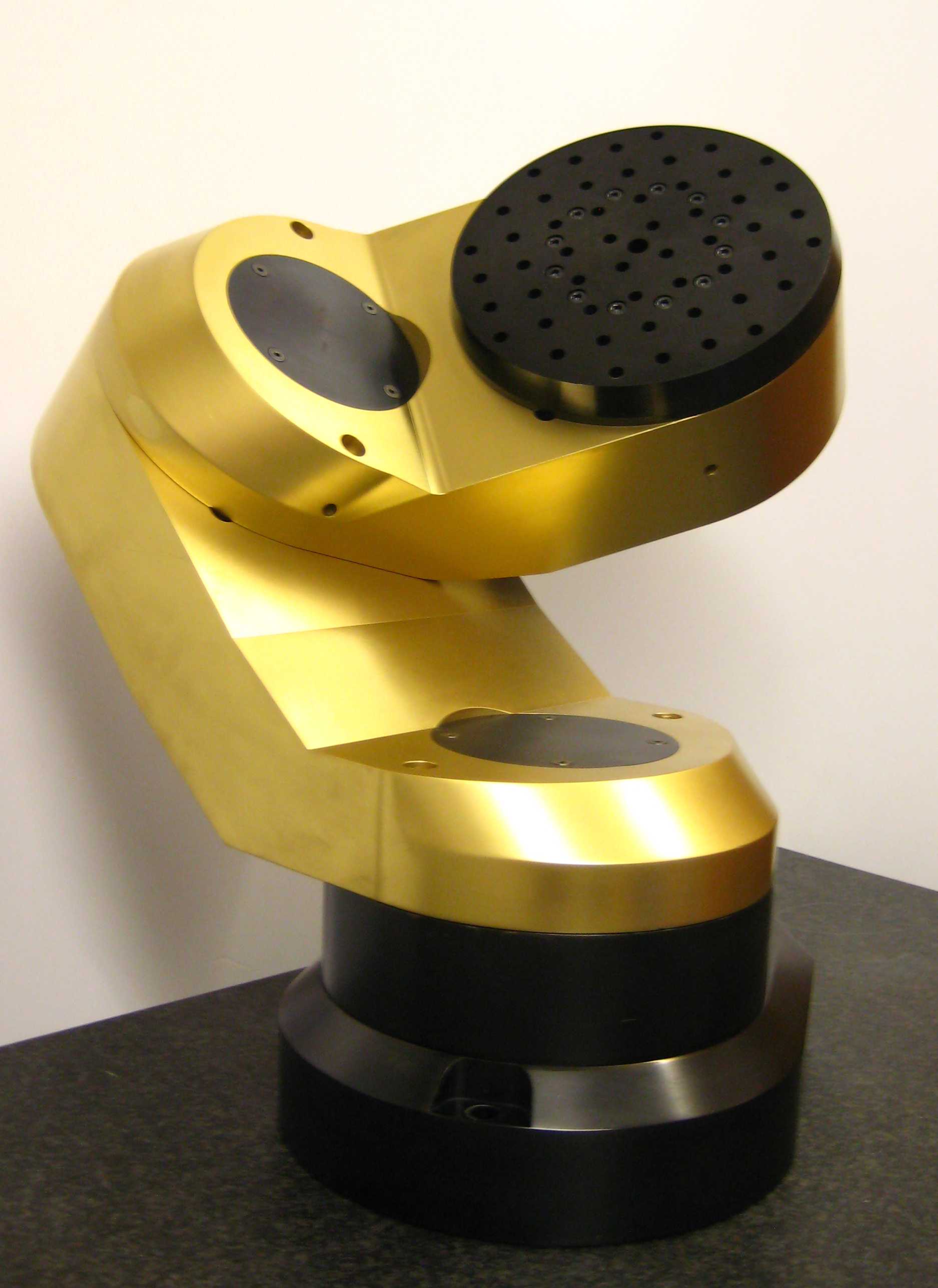

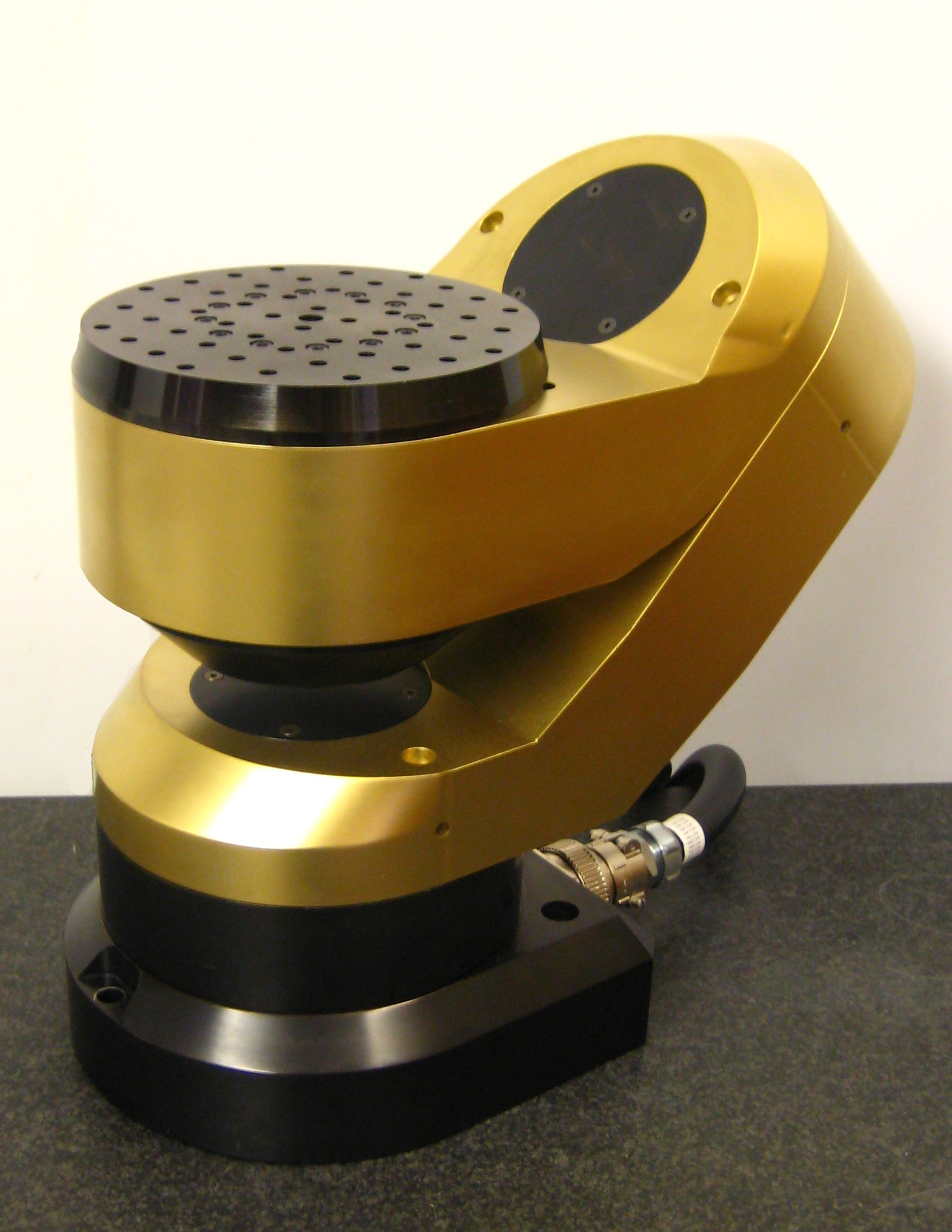

    Cybaman 3-Axis Manipulator

    Cybaman 3-Axis Manipulator


    Cybaman 3-Axis Manipulator

    Additive Options

    CAST Hybrid

    Combined Additive and Subtractive


    Laser Direct Energy Desposition

    Cybaman Additive Subractive Technologies

    Cybaman's CAST Hybrid manufacturing system combines Laser metal deposition and high speed milling in one integrated machine.

    Using the unique CAST system metal parts can be easily and quickly built using the machines additive capability and then subsequently rapidly finshed to the required surface finish and tolerance with the high speed milling spindle.

    Cybaman and ENGIN-X

    Stress measurement for the 21st century!

    The ISIS Facility, Rutherford Appleton Laboratory, UK, is a world-leading source of neutrons for scientific research. By studying how beams of these particles are scattered from materials, researchers gain information which in general terms tells them about “where atoms are and what they do”.

    One important area of application is in the measurement of residual stresses in engineering components. This technique is of considerable importance in safety-critical industries such as the aerospace and automotive sectors.

    The ENGIN-X beamline at ISIS is a purpose-built instrument specifically dedicated to this technique. In order to measure the full stress state, it is necessary to measure strain in a number of sample directions, and therefore to rotate the sample into a number of orientations.

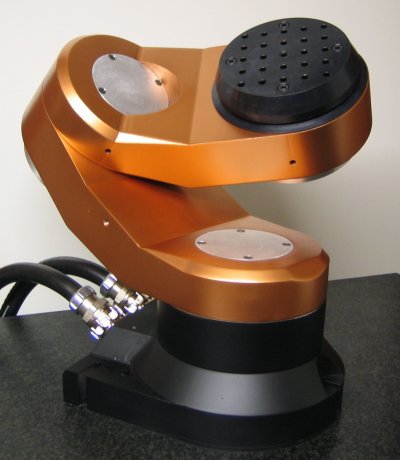

    The Cybaman Manipulator provides the ideal tool to automate the procedure for components of up to 25kg in weight, and facilitates easy switching back and forth between orientations.

    The Manipulator sits on an xyz translation table, enabling stresses to be mapped in 3D throughout a component.

    The orientation procedure is software-controlled: a computer model of the component (from CAD or laser-scanned point cloud data) is manipulated in the software to determine the correct measurement orientation, which is then fed to the Manipulator to execute the required rotations.

    For example, this procedure could be used to map strain perpendicular to a complex, curved surface, such as that of a fanblade.

    For more details about the ENGIN-X instrument, visit ENGINX-Cybaman-Manipulator

    2 Axis Positioning Stage

    Stress measurement for the 21st century!

    Designed and Customised for DTI Link Photonics Project, a 2 Axis CNC Positioning Stage for BMW-Rover's Laser based Fibre-Fringe projector for Automotive Form Metrology Applications.

    Winner of the NPL Award for Manufacturing Excellence 2001.
